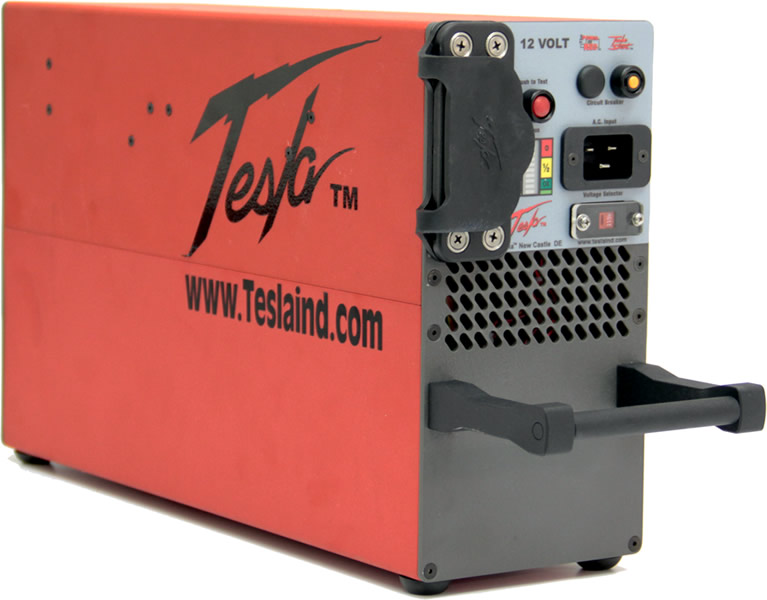

TI1530 GPU-12

Designed for use with 12 Volt systems.
System back-charges from the started vehicles’ engine in minutes.
Operates with a circuit breaker, therefore eliminating the need to replace blown fuses.
Safe, easy, maintenance-free operation.
5 to 7-year service life.
One person can maneuver and operate the unit.
Safe for flight, non-hazardous, dry-cell technology.
The “Push to Test” feature provides instant state of charge of Unit’s Battery Cells.

TI1530 GPU-12 Specifications

DC Output:	3000 peak starting amps 20 amps continuous @ 14.25 Vdc (when plugged into ac power) 66 amp hours (1309 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 100-260 Vac 50/60 Hz 5.5 amps @ 120 Vac 2.75 amps @ 240 Vac
Recharging Rate:	143 minutes (from full discharge) @ 25°C
Dimensions:	20.61" L x 5.2" W x 10.56" H 523.49 mm x 132.08 mm x 268.25 mm
Weight:	55.6 lbs (25.21 kg)
Warranty:	2 Years (3 Year Optional)
