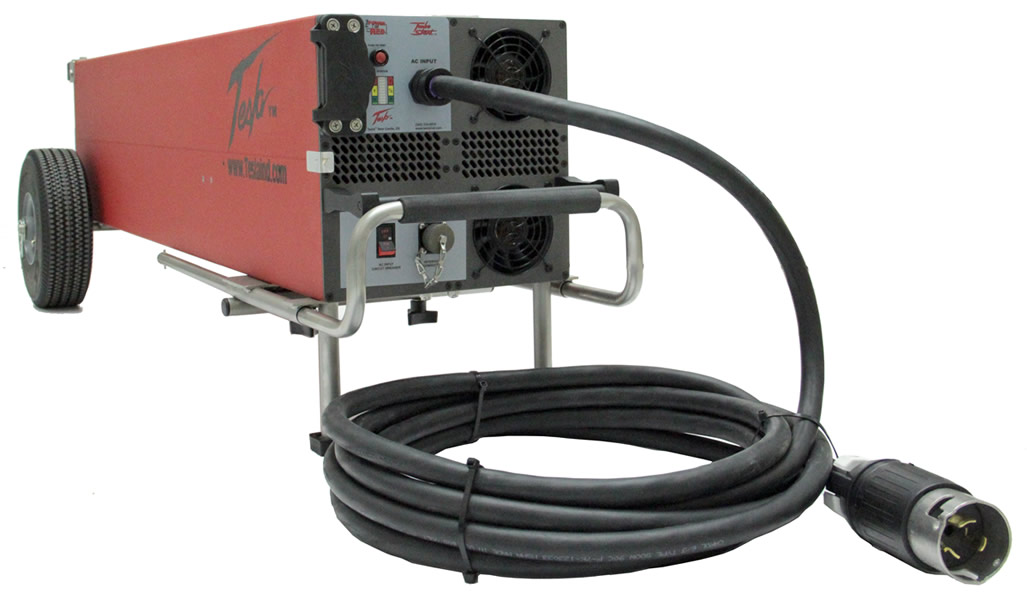

TI4200 GPU-24-PFC

200 continuous amps from a single phase outlet.
Ideal for small to medium size, fixed wing aircraft.
Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
System back-charges from the started vehicles’ engine in minutes.
0.999% power factor
<2% THD (Total Harmonic Distortion).
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology.

TI4200 GPU-24-PFC Specifications

DC Output:	1500 peak starting amps 200 amps continuous @ 28.5 Vdc (when plugged into ac power) 223 amp hours (6212 watt hours) with ac power 23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 200-260 Vac / 40 Hz - 450 Hz 33.5 amps @ 208 Vac 50 amp Twist-Lock Plug (50 amp service required)
Recharging Rate:	12 minutes (from full discharge) @ 25°C
Dimensions:	49.0" L x 19.25" W x 16" H 1244.60 mm x 488.95 mm x 406.40 mm
Weight:	139 lbs (63.25 kg)
Warranty:	2 Years (3 Year Optional)
