Tesla™ Cobra™ Connectors

Tesla™ Cobra™ Connectors are constructed from rugged combinations of advanced composite materials and corrosion resistant alloys. The result is weatherproof connectors that will withstand battlefield conditions and extreme environments. Along with highly conductive contact materials, Cobra™ Connectors feature virtually indestructible designs and fast "in-the-field" component replacement to make them the last connectors you will ever need.

Tesla™ Connectors are warranted for 2 years. Our Customer Service Team is always available to assist you in answering any questions or getting necessary replacement parts and tools for your connectors.

Additional Features on NATO Plugs!

Our NATO plugs positive post has a tip on the end to prevent arcing. An O-ring and hex allows for easy removal and installation of the post with a 3/4” deep well socket.

Additional Features on Aviation Plugs!

On the Aviation plugs has a replaceable nose. Customers can now easily replace the nose with a standard hex key.

PLEASE NOTE: To download the PDF's for previous models please choose "original" version.

Weatherproof Construction

Through a series of strategically placed seals and bushings, our plugs are hermetically sealed to lock out rain, snow, sand and other harmful debris.

Internal Cable Connections

Unlike plugs with cables that are molded directly to the housing, easily accessible lugs allow for direct termination inside of the plug. Additionally, compression grommets and bushings provide strain relief. This unique combination of protection eliminates dangerous shocks from exposed wiring due to cable stretching and splicing.

Rugged, Durable, Reliable

Made from virtually indestructible composite materials, the plug housing won’t crack, melt, blister, dry-rot or disintegrate. This, in conjunction with corrosion resistant conductors, insures that the Tesla™ Compact NATO Plug will still be in the field long after other plugs have failed.

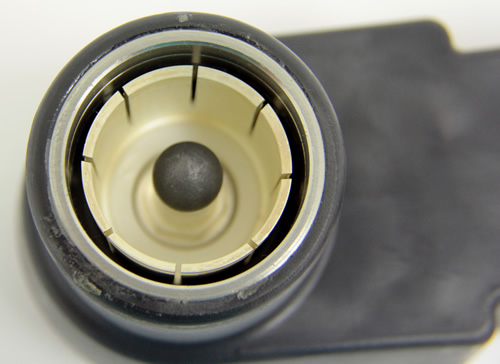

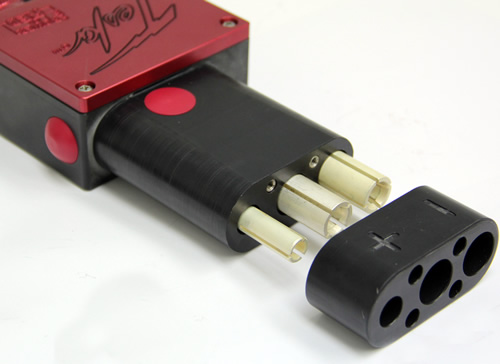

Replaceable Contacts

Manufactured from highly conductive alloys, the negative contact is specially tapered and has memory to maximize contact surface area and to minimize deformity over time. Once installed, contacts are hermetically sealed within the plug.

Insertion/Extraction Tool

Our Connectors can be easily repaired by replacing the contacts using the Insertion/Extraction Tool. The tool and replacement contacts can be ordered through Tesla™ Customer Service at (302) 324-8910.

Cobra™ NATO Connectors

TI2005-078
Cobra NATO Plug
NSN: 6130015231270
TI2005-129
Cobra Compact NATO Plug
NSN: 5935015238368
TI2005-147
Cobra NATO 2-Pin Adapter
NSN: 5935015255316
TI2000-295
Cobra Male NATO to
Female 2-Pin Adapter
TI2000-087
Cobra NATO
Receptacle
TI2000-227
Cobra NATO Receptacle
with 3.25" Flange
TI2000-376
Cobra NATO Inline
Receptacle
TI2005-852
Cobra NATO Wall Mount Receptacle
TI2007-828
Cobra NATO
Receptacle Box

Cobra™ Aviation Connectors

TI2005-238
Cobra™
DC Aviation Plug
TI2005-241
Cobra™ DC Aviation
Plug with On/Off Switch
TI2005-400
Cobra™
400Hz Aviation Plug
TI2000-346
Cobra™
400Hz Aviation Plug
TI2000-331
Cobra™ Aviation Plug
with Two Conductors
TI2000-332
Cobra™ Aviation Plug
with Four Conductors
TI2000-336
Cobra™ Aviation
Receptacle

TI2000-375
Cobra™ Aviation Inline
Receptacle

TI2005-831
Cobra™ Aviation 400Hz AC Receptacle

DC Battery Connectors

DC Battery Connectors


DC Battery Receptacles
NSN: 593501594-9348

TI2005-384
Dual DC Battery Connector

Miscellaneous Connectors

TI2000-294
Cat® Jump Start Connector TI2000-421
Cat® Jump Start Receptacle Cable Crimp Bullets

Ring Terminals

TI28000-614
Alligator Clamps
