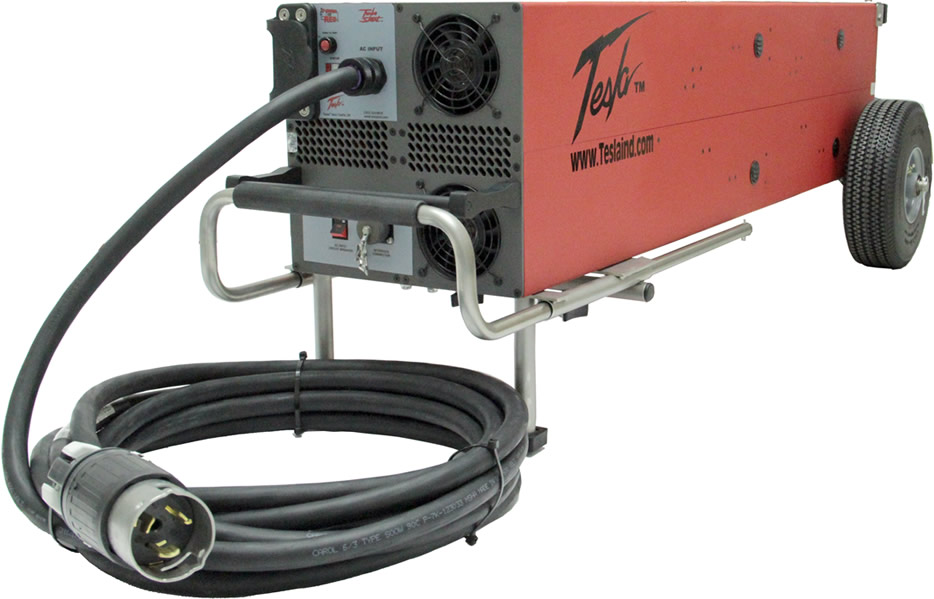

TI5200 GPU-24-PFC

This unit provides 200 continuous amps from a single phase outlet. With 46 amps of rechargeable power available, this system will take care of your power requirements in a hangar or maintenance facility as well as in the field.

3000 peak starting amps.
Ideal for small to medium size, fixed wing aircraft.
Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
System back-charges from the started vehicles’ engine in minutes.
0.999% power factor.
<2% THD (Total Harmonic Distortion).
Will charge and condition vehicle batteries when unit is left connected to vehicle (AC power required).
One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology.

TI5200 GPU-24-PFC Specifications

DC Output:	3000 peak starting amps 200 amps continuous @ 28.5 Vdc (when plugged into ac power) 246 amp hours (6724 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 200-260 Vac / 40 Hz - 450 Hz 33.5 amps @ 208 Vac 50 amp Twist-Lock Plug (50 amp service required)
Recharging Rate:	19 minutes (from full discharge) @ 25°C
Dimensions:	49.0" L x 19.25" W x 16" H 1244.60 mm x 488.95 mm x 406.40 mm
Weight:	177 lbs (80.28 kg)
Warranty:	2 Years (3 Year Optional)
