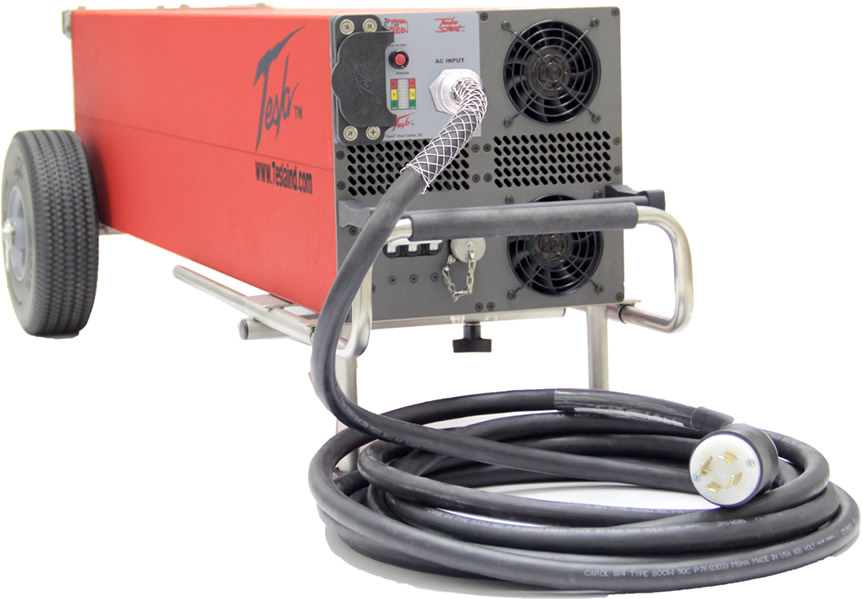

TI4200 GPU-24

Designed for small to medium size, fixed wing aircraft.
Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
One person can easily maneuver and operate the unit.
Will charge and condition vehicle batteries when unit is left connected to vehicle (ac power required).
GPU will back-charge off a vehicle charging system (no ac required).

TI4200 GPU-24 Specifications

DC Output:	1500 peak starting amps 200 amps continuous @ 28.5 Vdc (when plugged into ac power) 223 amp hours (6212 watt hours) with ac power 23 amp hours (512 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from three phase 200-260 Vac 50/60 Hz 20 Amps @ 208 Vac Requires 30 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate:	12 minutes (from full discharge) @ 25°C
Dimensions:	50.0" L x 19.25" W x 16.28" H 1271.40 mm x 489.0 mm x 413.50 mm
Weight:	148 lbs (67.13 kg)
Warranty:	2 Years (3 Year Optional)
