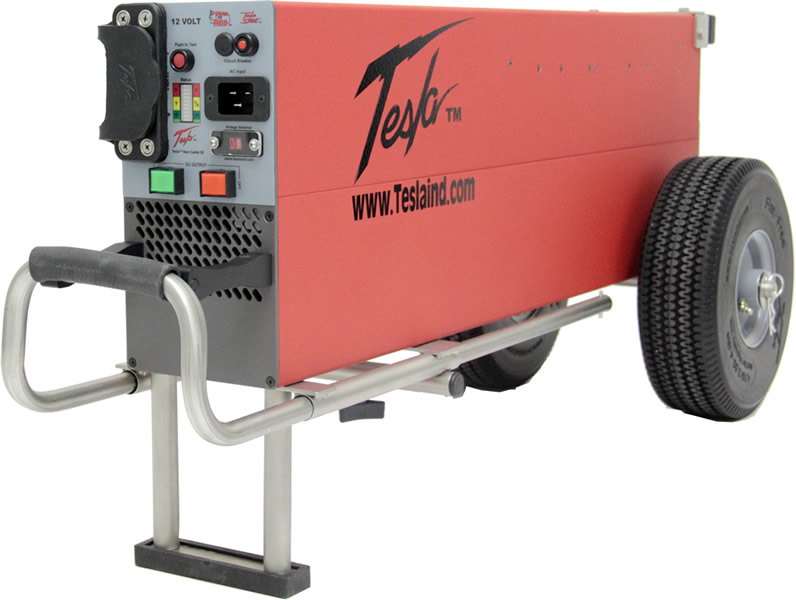

TI1590 GPU-12

Designed for use with 12 Volt systems.
System back-charges from the started vehicles’ engine in minutes.
DC output on/off controls to prevent arcing.
Safe, easy, maintenance-free operation.
5 to 7-year service life.
One person can maneuver and operate the unit.
Safe for flight, non-hazardous, dry-cell technology.
The “Push to Test” feature provides instant state of charge of Unit’s Battery Cells.

TI1590 GPU-12 Specifications

DC Output:	3500 peak starting amps 40 amps continuous @ 14.25 Vdc (when plugged into ac power) 132 amp hours (2618 watt hours) with ac power 92 amp hours (2048 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 100-260 Vac 50/60 Hz 8.5 amps @ 120 Vac 4.25 amps @ 240 Vac
Recharging Rate:	150 minutes (from full discharge) @ 25°C
Dimensions:	36.38" L x 14.25" W x 15.64" H 924.10 mm x 362.0 mm x 397.20 mm
Weight:	124 lbs (56.24 kg)
Warranty:	2 Years (3 Year Optional)
