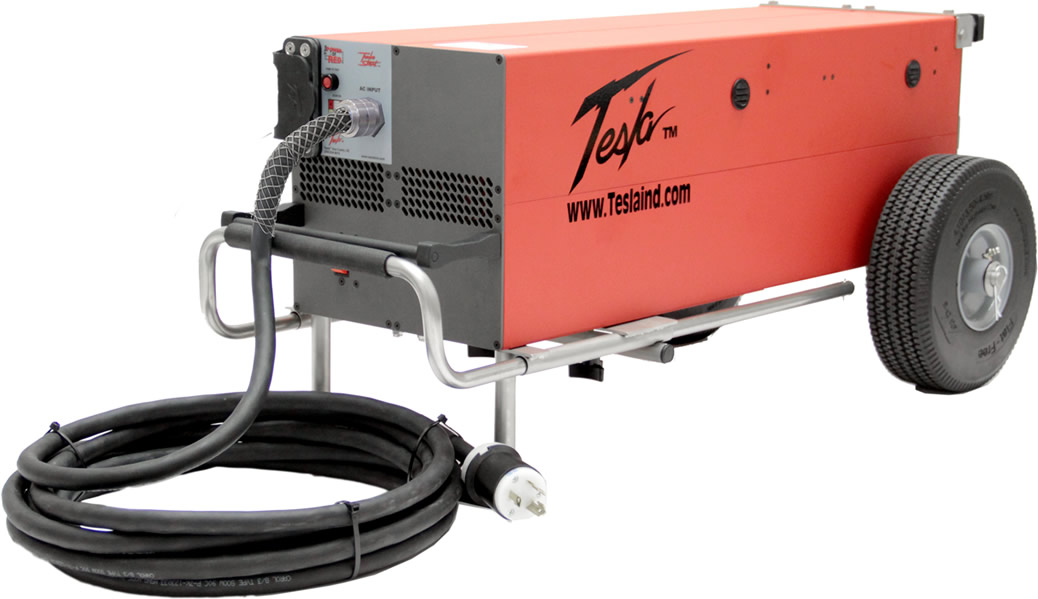

TI5100 GPU-24

The TI5100 delivers 100 amps continuous combined with 3000 peak starting amps of rechargeable power for remote use.

Designed for small to medium size, fixed wing aircraft.
Excellent for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics).
One person can easily maneuver and operate the unit.
Will charge and condition vehicle batteries when unit is left connected to vehicle ac power required).
GPU will back-charge off a vehicle charging system (no ac required).

TI5100 GPU-24 Specifications

DC Output:	3000 peak starting amps 100 amps continuous @ 28.5 Vdc (when plugged into ac power) 146 amp hours (3874 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac
AC Input:	Operates and charges from single phase 200-260 Vac 50/60 Hz 20 amps @ 240 Vac Requires 30 amp service (contact Tesla™ Industries for receptacle information)
Recharging Rate:	33 minutes (from full discharge) @ 25°C
Dimensions:	36.25" L x 19.25" W x 15.97" H 920.75 mm x 489.0 mm x 405.80 mm
Weight:	160 lbs (72.57 kg)
Warranty:	2 Years (3 Year Optional)
