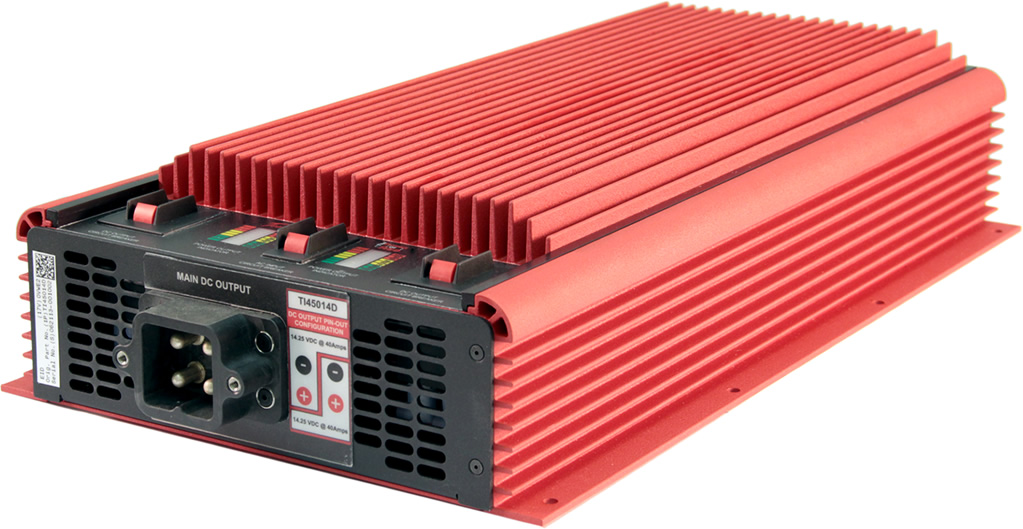

TI45014D Battery Charger/Conditioner

NSN: 6130016256382

The Tesla™ TI45014D Battery Charger/ Conditioner is a portable system that will rapidly recharge any 12 volt or 24 volt battery. Rugged and reliable in the harshest conditions, the Tesla™ Charger / Conditioner recharges dead batteries faster than any other product of comparable size. Additionally, all models incorporate an intelligent recharging circuit that prevents overcharging and provides pure dc output for efficient battery conditioning.

80 amps continuous @ 14.25 Vdc or 40 amps continuous @ 28.5 Vdc
Removable ac line cord.
Voltage selector switch allows for use with 120 Vac or 240 Vac input.
Thermal/Overload protection.
Lightweight and portable.
Cooling Fan.
Built-in Recharge Indicator.
Exceeds MIL-STD-810.
Other voltages available upon request.

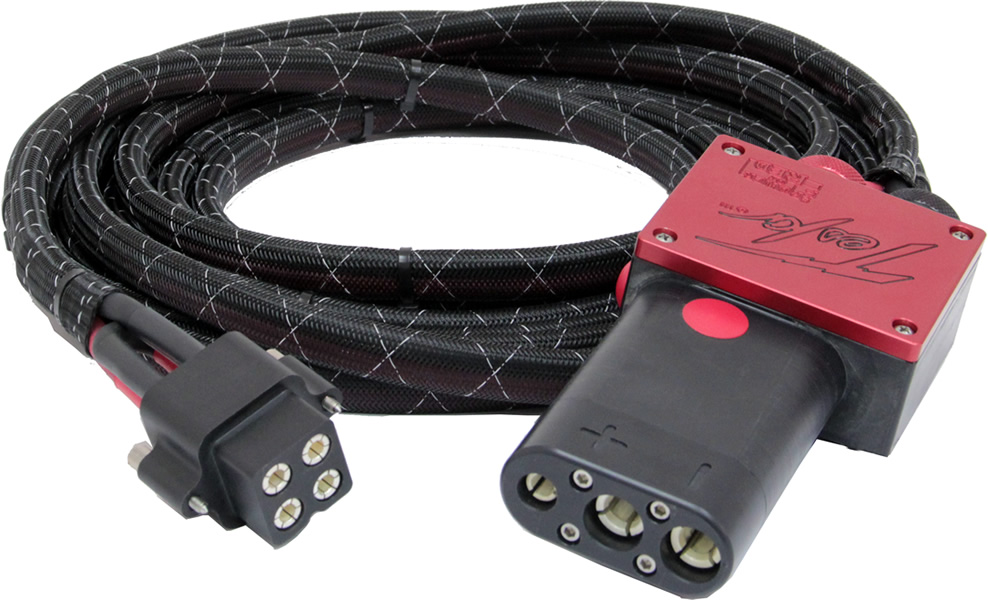

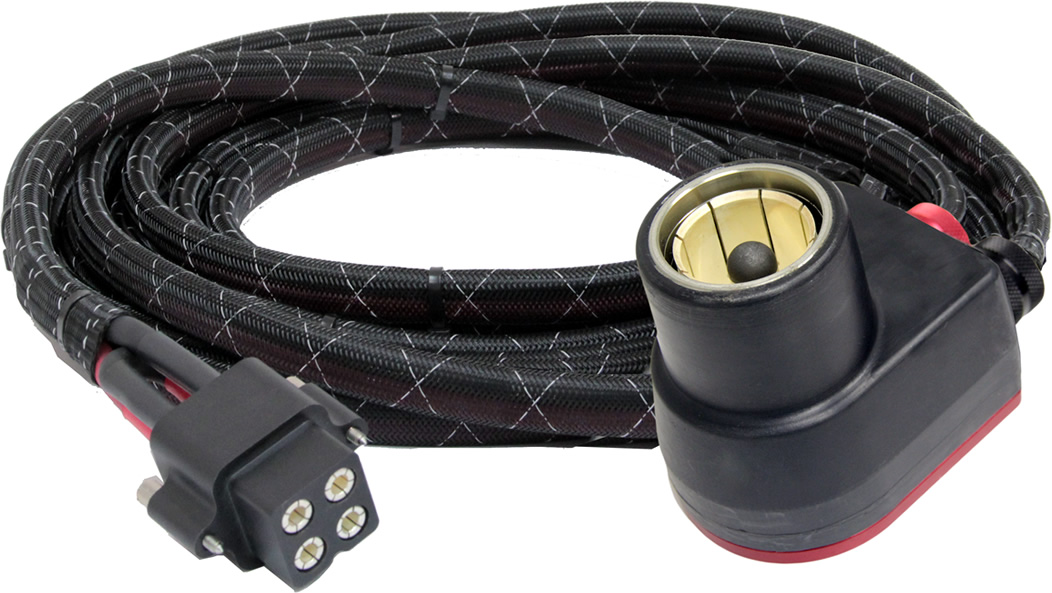

Optional Cable Assemblies available with NATO and Aviation Plug.
2 year warranty (3 years optional).

TI45014D Battery Charger/Conditioner Specifications

Output:	(12 Vdc Output) - 1140 W (80 amps continuous @ 14.25 Vdc when plugged into ac power) (24 Vdc Output) - 1140 W (40 amps continuous @ 28.5 Vdc when plugged into ac power)
Input:	Operates from Single Phase 100-260 Vac / 40-500 Hz 1968 W (8.2 A rms @ 240 Vac) 1944 W (16.2 A rms @ 120 Vac)
Dimensions:	20.16” L x 10.53” W x 4.00” H 512.1 mm x 267.5 mm x 101.7 mm
Weight:	17.45 lbs (7.92 kg)
Warranty:	2 Years (3 Year Optional)
