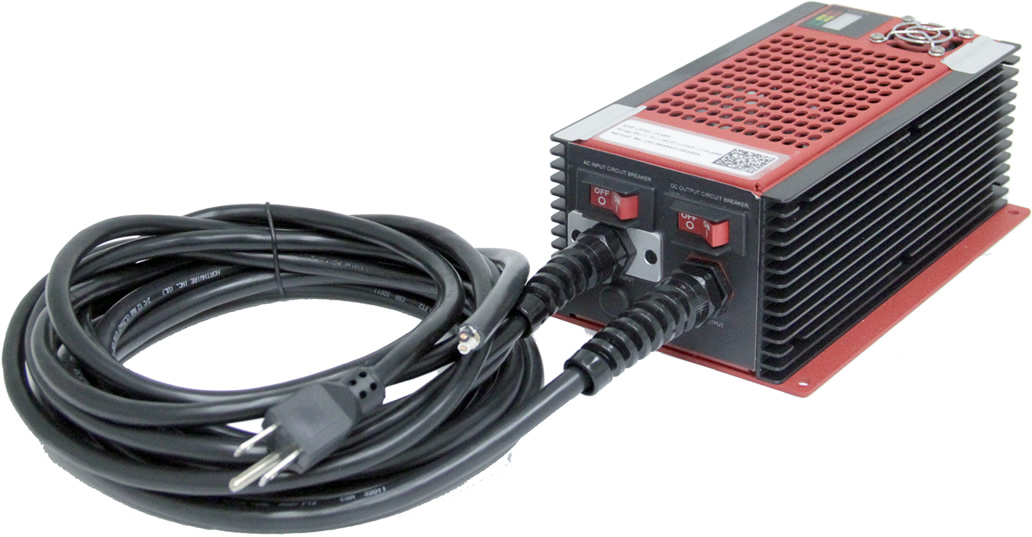

TI150 Series Battery Charger / Conditioner
Hardwired
The Tesla™ TI150 Series Battery Charger/Conditioners will rapidly recharge any 12 or 24 volt battery (depends on model chosen). Designed for permanent installation and hardwired, it is rugged and reliable in the harshest conditions The Tesla™ Charger / Conditioner recharges dead batteries faster than any other product of comparable size. Additionally, all models incorporate an intelligent recharging circuit that prevents overcharging and provides pure dc output for efficient battery conditioning.
- Circuit Breaker protected output.
- Designed for permanent installation.
- Thermal/Overload protection.
- Built-in recharge indicator.
- Cooling fan.
- Exceeds MIL-STD-810.
- 2 year warranty (3 years optional)
TI150 Series Battery Charger/Conditioner Specifications
| Output: | Models TI15014-120 and TI15014-240 (12 Vdc Output) - 20 amps continuous @ 14.25 Vdc (when plugged into ac power) Models TI15028-120 and TI15028-240 (24 Vdc Output) - 10 amps continuous @ 28.5 Vdc (when plugged into ac power) |
| Input: | Models TI15014-120 and TI15028-120 - Operates from Single Phase 100-260 Vac / 40-500 Hz - 4.7 amps @ 120 Vac Models TI15014-240 and TI15028-240 - Operates from Single Phase 100-260 Vac / 40-500 Hz - 2.35 amps @ 240 Vac |
| Dimensions: | 7.49” L x 5.68” W x 2.87” H 190.2 mm x 144.3 mm x 72.9 mm |
| Weight: | 6.00 lbs (2.72 kg) |
| Warranty: |
|
