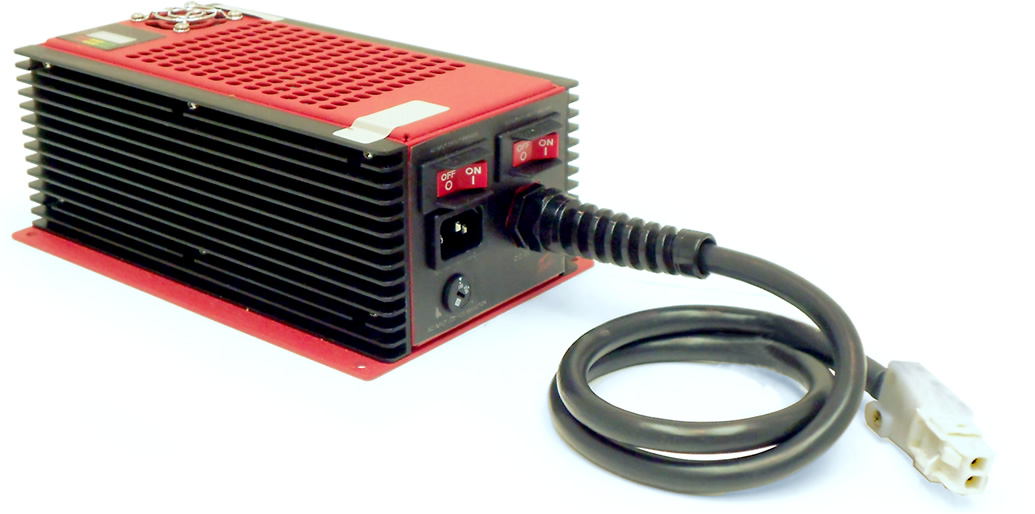

TI150 Series Battery Charger / Conditioner

International Electrotechnical Commission (IEC) Cord

The Tesla™ TI150 Series Battery Charger/Conditioners are lightweight portable systems that will rapidly recharge any 12 or 24 volt battery (depending on model chosen). Rugged and reliable in the harshest conditions, the Tesla™ Charger/ Conditioner recharges dead batteries faster than any other product of comparable size. Additionally, all models incorporate an intelligent recharging circuit that prevents overcharging and provides pure dc output for efficient battery conditioning. This unit comes complete with a removable ac line cord and two quick disconnect cables, ring terminals and alligator Clamps.

Voltage Selector Switch allows for use with 120 Vac or 240 Vac input.
Removable ac line cord.
Model TI15014-120-240 charges 12V batteries.
Model TI15028-120-240 charges 24V batteries.
Thermal/Overload protection.
Lightweight and portable.
Cooling Fan.
Built-in recharge indicator.
Exceeds MIL-STD-810.
2 year warranty (3 years optional)

TI150 Series Battery Charger/Conditioner Specifications

Output:	Models TI15014-120-240 (12 Vdc Output) - 20 amps continuous @ 14.25 Vdc (when plugged into ac power) Models TI15028-120-240 (24 Vdc Output) - 10 amps continuous @ 28.5 Vdc (when plugged into ac power)
Input:	Operates from Single Phase 100-260 Vac / 40-500 Hz 4.7 Amps @ 120 Vac 2.35 Amps @ 240 Vac
Dimensions:	13.37” L x 5.68” W x 3.5” H 314.3 mm x 144.3 mm x 88.9 mm
Weight:	4.11 lbs (1.86 kg)
Warranty:	2 Years (3 Year Optional)

Download Docs

TI150 (IEC) Series Tech Sheet

TI150 (IEC) Series Manual

Printable Mounting Pattern

Includes

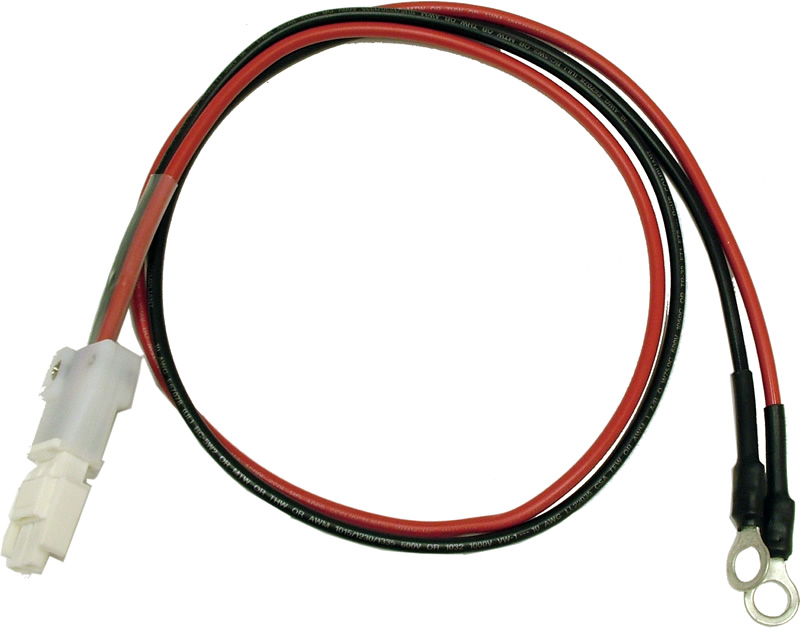

TI2010-096 12/24V Cable Assembly Quick Disconnect DC Output with Ring Terminals.

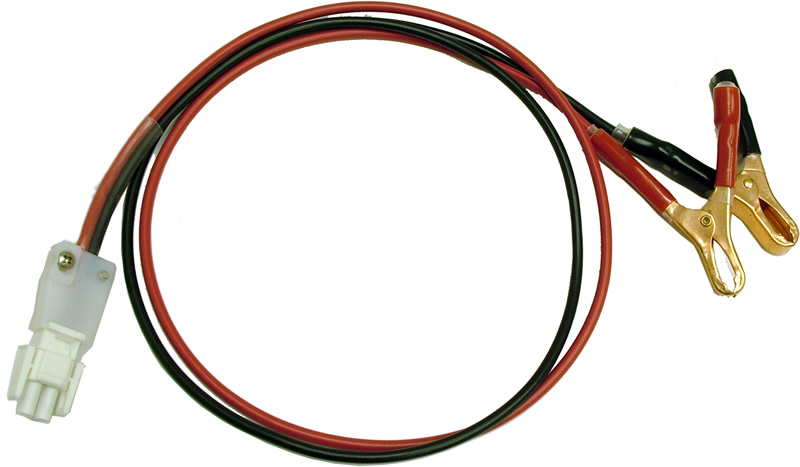

TI2010-095 12/24V Cable Assembly Quick Disconnect DC Output with Alligator Clamps.

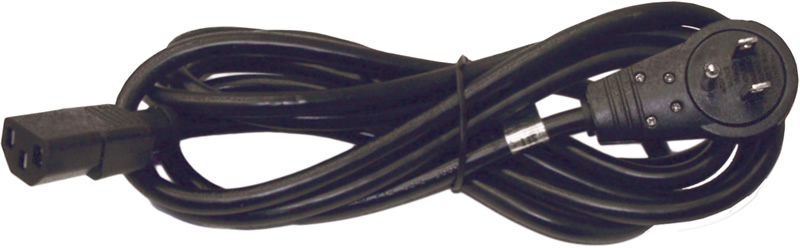

TI25000-053 American Line Cord
