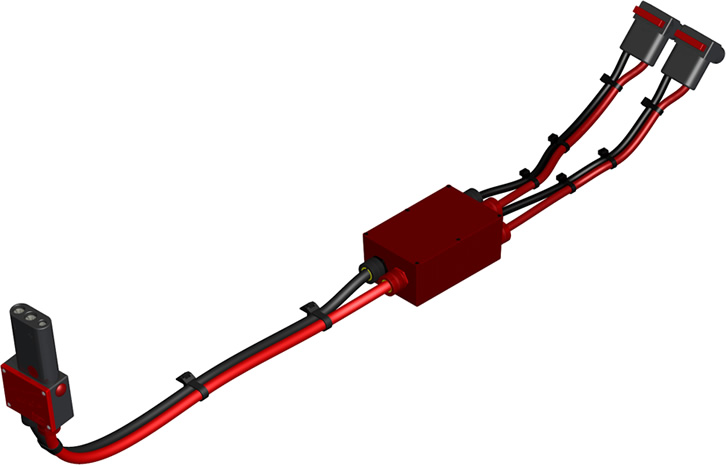

TI2007-021: Aviation to Dual DC, 35' Y-Cable Assembly

Y-Cable Assembly has an Aviation Connector with a 30ft. 4Ø cable to a sealed connection box branching out to Dual DC Connectors with 5 ft. 1Ø cables.

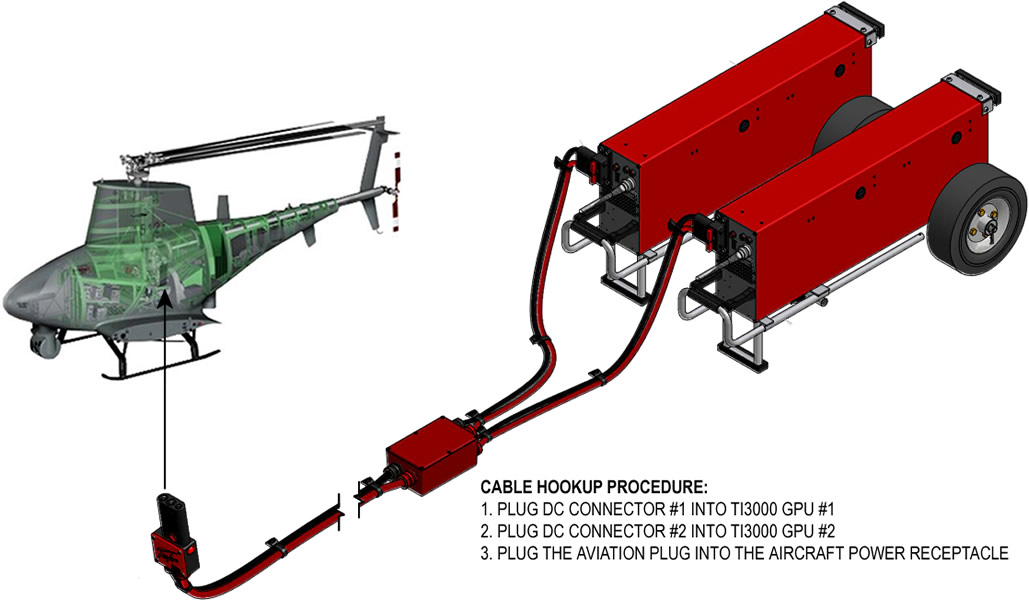

The TI2007-021 can tie two separate units together to double the output. In the case of the TI3000 GPU-24, 100 amps continuous will be achieved connecting these two units together with this Y Cable.

• 35' cable assembly
• Maintenance-free design
• Up to 3000 peak amps
• Clamped cable connections
• UV, fuel, fungus, water, and oil resistant
• Easy component replacement
• Manufactured by Tesla™
• 2 Year Warranty

Connector Parts & Tools

TI2005-488
DC Battery Connector
Insertion ⁄ Extraction Tool TI2005-490
DC Battery Connector
Replacement Contacts TI2005-199
Cable Crimp Bullets

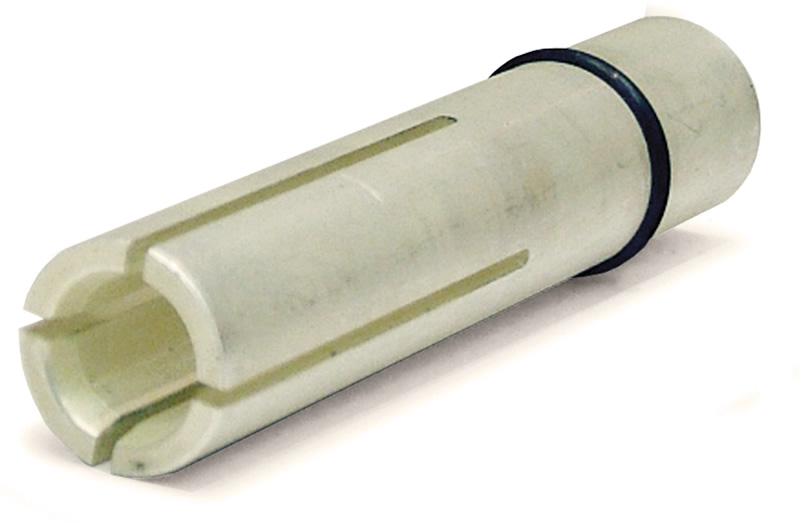

TI2005-251
DC Aviation Plug

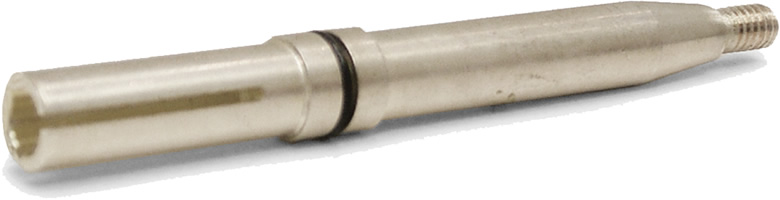

Neg. & Pos. Contact TI2005-250
3-Slotted

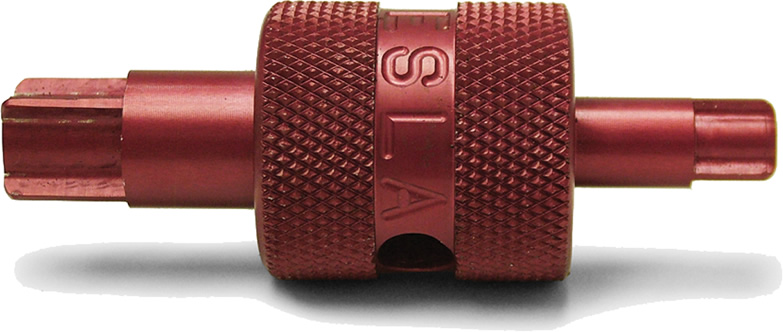

Connector TI2005-239
DC Aviation
Insertion ⁄ Extraction Tool TI2004-341
Replacement Nose
Requires 9/64" Allen Wrench

Ring Terminals


TI2005-072
Negative Cord Grip


TI2005-073
Positive Cord Grip
NSN: 5340015244530

TI2005-074
Negative Cap
NSN: 5999015238390

TI2005-075
Positive Cap
NSN: 5999015245077
