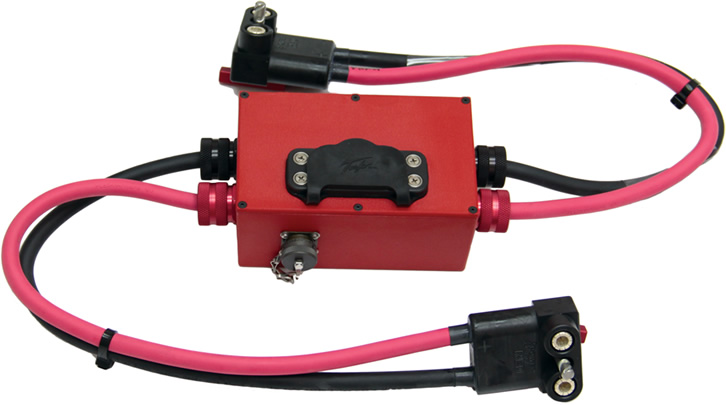

TI2000-071 Y-Cable: DC Receptacle Box to Dual DC Connectors

Y-Cable Assembly has a DC Receptacle Box to dual DC Connectors with 2 ft. 1Ø cables.

Originally created for TI2500 GPU-24 to tie both DC Connectors together to get one output, combining for continuous dc power. In the case of the TI2500, it would convert two 25 amps to get an output of 50 amps continuous. The TI2000-071 Y-Cable also has a port to connect the TI3100A Digital Volt/Amp Meter (sold separately). The DVAM 3100A provides measurements for all voltage ranges between zero to 200 and amperage draws between zero and 2,000.

The TI2000-071 can also tie two separate units together to double the output. In the case of the TI3000 GPU-24, 100 amps continuous will be achieved connecting these two units together with this Y Cable.
