PARTS for TI1000 GPU-24
IMPORTANT NOTICE: If the unit is opened during its warranty period, the warranty will be voided.
Please contact Tesla Customer Service Department before making any repairs. Before reparing the unit yourself, please consider using our shop for repair. We have a quick turnaround and our repairs come with a one year warranty.
TI7000-106
12 AMP Single Pole Circuit Breaker
12 AMP Single Pole Circuit Breaker
TI16000-173
AC Receptacle (for circuit breaker front panel) - NEMA
AC Receptacle (for circuit breaker front panel) - NEMA
TI2010-086
AC Receptacle Assembly with cables-NEMA
AC Receptacle Assembly with cables-NEMA

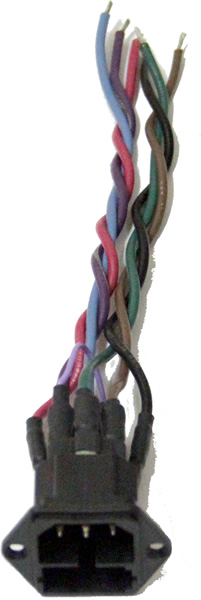

TI2010-001
AC Receptacle Assy. with cables-Fuse Style
AC Receptacle Assy. with cables-Fuse Style
TI2000-201
AC Receptacle with Fuse Box
AC Receptacle with Fuse Box
TI2000-028
Bar Graph Board
Bar Graph Board

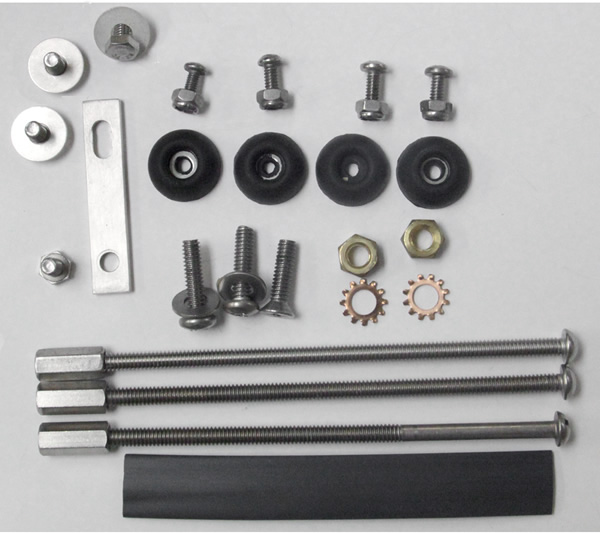

TI24000-015
Battery Cell Hardware Assembly
Battery Cell Hardware Assembly
TI7000-006
Battery Cells
Battery Cells

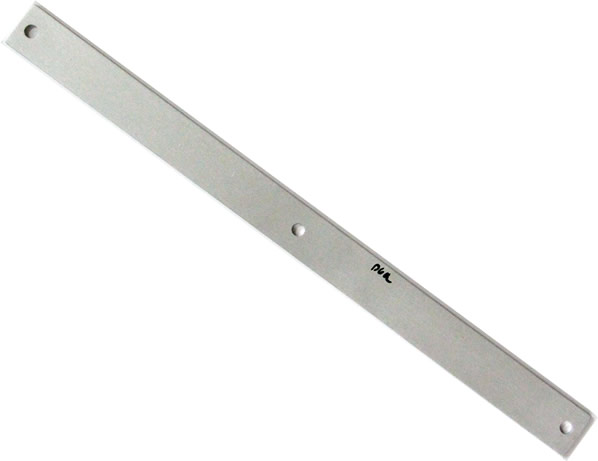

TI2005-046
Battery Strap
Battery Strap

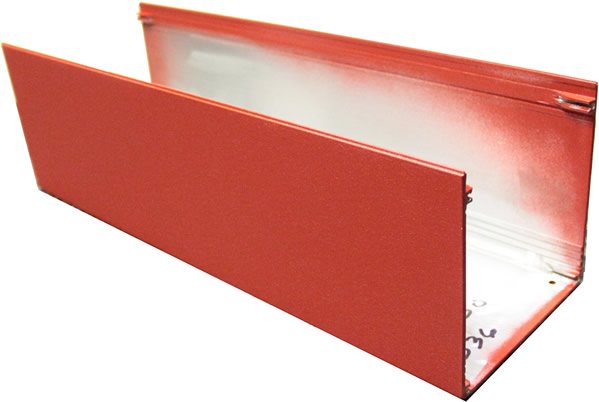

TI2005-048
Case Bottom
Case Bottom

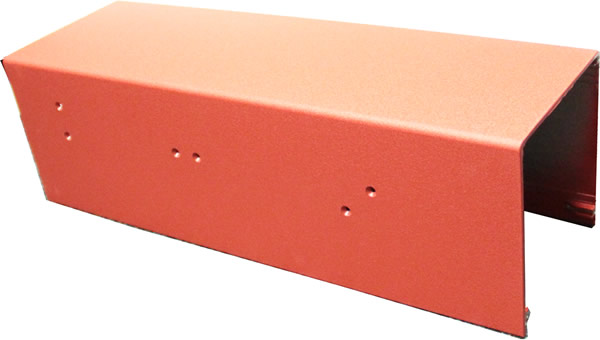

TI2005-047
Case Top
Case Top
TI2000-022
Converter Board
Converter Board
TI2000-018
Cooling Fan and Connector
Cooling Fan and Connector
TI2005-379
DC Battery Receptacle
DC Battery Receptacle
TI2011-501
DC Harness- Internal
DC Harness- Internal
TI2005-925
DC Receptacle Dust Cover (Rubber)
DC Receptacle Dust Cover (Rubber)
TI2005-458
Front Panel - Face Plate Only - NEMA
Front Panel - Face Plate Only - NEMA
TI2005-015
Front Panel - Face Plate Only (Fuse Style)
Front Panel - Face Plate Only (Fuse Style)

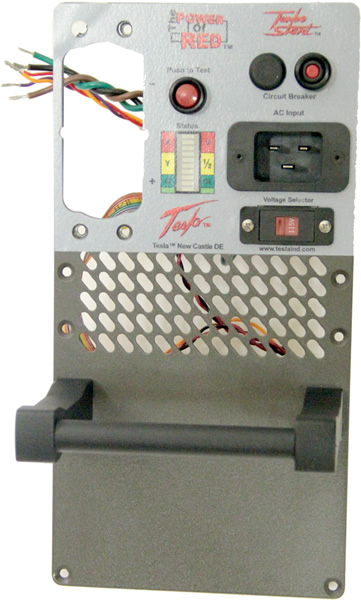

TI2000-068
Front Panel Complete with Push to Test (Commercial)-NEMA
Front Panel Complete with Push to Test (Commercial)-NEMA
TI24000-007C1P
Front Panel Complete with Push to Test (Fuse Style)
Front Panel Complete with Push to Test (Fuse Style)
TI24000-169
Front Panel Sticker (Commercial & Military) - NEMA
Front Panel Sticker (Commercial & Military) - NEMA
TI24000-008
Front Panel Sticker (Fuse Style)
Front Panel Sticker (Fuse Style)

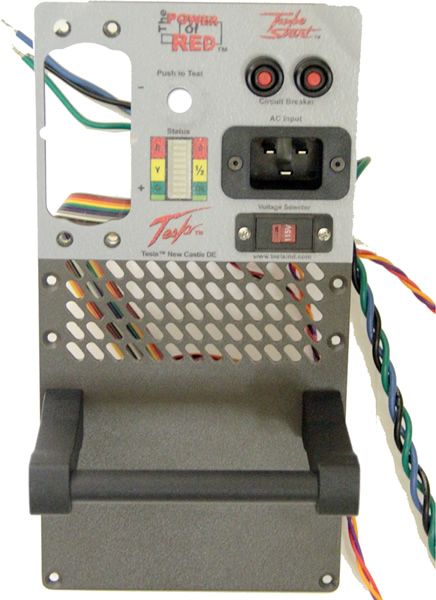

TI2000-126
Front Panel without Push To Test includes Handle-NEMA
Front Panel without Push To Test includes Handle-NEMA
TI2000-004
Fuse Holder with (2) Fuses
Fuse Holder with (2) Fuses
TI22000-030
Fuses 15 Amp
Fuses 15 Amp
TI2005-016
Handle Only
Handle Only
TI2005-373
Heatsink
Heatsink
TI2000-023
Push to Test Board
Push to Test Board
TI2000-042
Push to Test Button
Push to Test Button

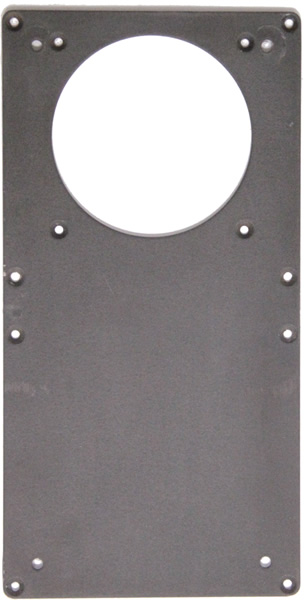

TI24000-005
Rear Panel - Plate Only
Rear Panel - Plate Only

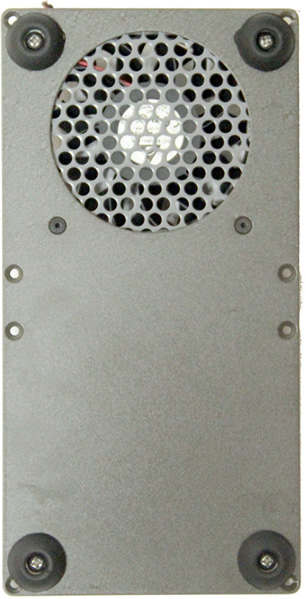

TI2000-007
Rear Panel Complete with Fan (excludes Rear Rest)
Rear Panel Complete with Fan (excludes Rear Rest)

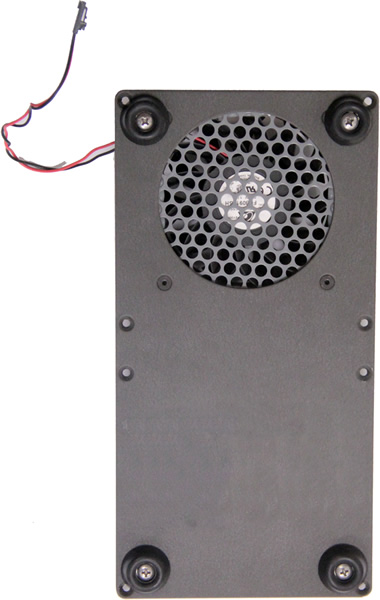

TI2000-011
Rear Panel Complete with Fan (excludes Rear Rest)
Rear Panel Complete with Fan (excludes Rear Rest)

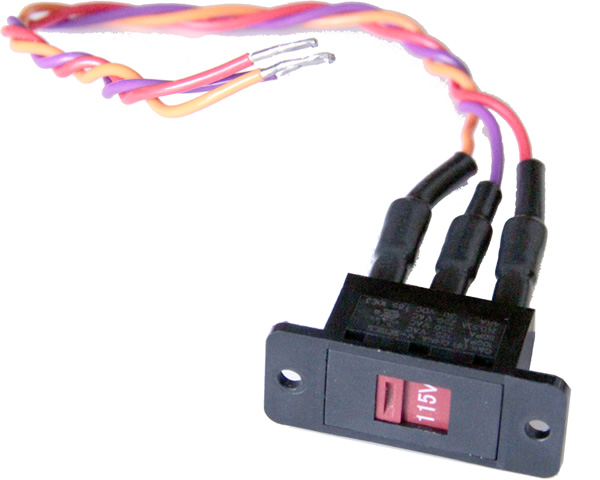

TI2010-083
Slide Switch Assembly with wires
Slide Switch Assembly with wires
TI2005-367
Slide Switch Clear Cover
Slide Switch Clear Cover
Included
- All configurations INCLUDE TI25000-211 9'10" NEMA 515P North American Line Cord
TI1000 GPU-24 / NSN: 6130014185230 (CL IX)
- TI2007-208 8' DC Aviation Cable Assembly OR
- TI2007-315 15' DC NATO Cable Assembly
TIMV1000 GPU-24 / NSN: 6130014755313 (CL II)
- TI2007-315 15' DC NATO Cable Assembly
TI1000 GPU-24 UAV / NSN: 6130014555172 (CL IX)
- TI024050122 13' Interface Box Cable
