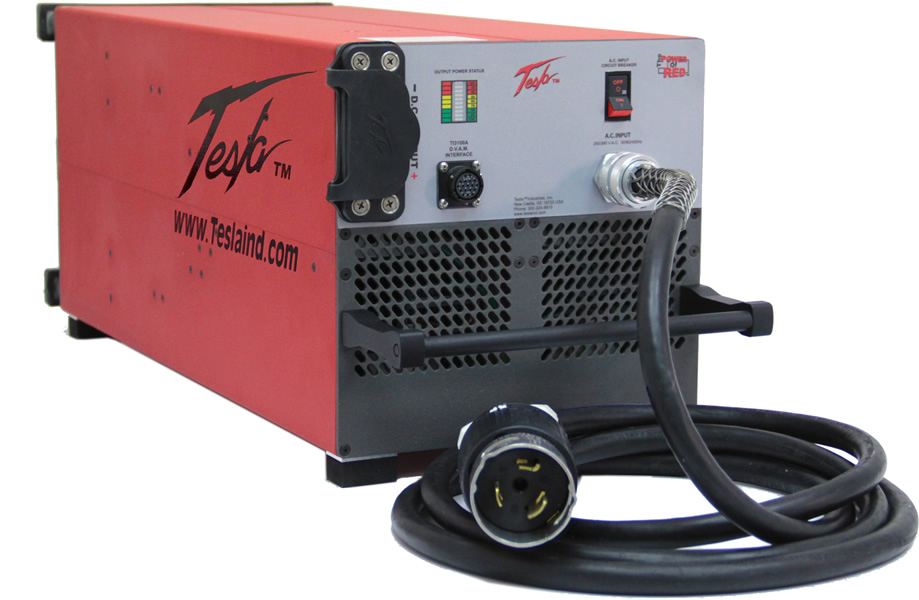

TI200-PFC

Perfect for testing and troubleshooting (avionics, TMDE, and electronics).
Safe, easy, maintenance-free operation.
0.999% power factor.
<2% THD (Total Harmonic Distortion).
One person can maneuver and operate the unit.
Thermal/Overload protection.
Built-in Power Output Indicator.
Will charge and condition batteries when unit is left connected to vehicle or aircraft (ac power required).
NOTE: Unit is not rated for engine starting. It is to be used for ground maintenance only.

TI200-PFC Specifications

DC Output:	200 amps continuous @ 28.5 Vdc (when plugged into ac power)
AC Input:	Operates from Single Phase 200-260 Vac / 40 Hz - 450 Hz 33.5 amps @ 208 Vac - 6968 Watts 50 amp Twist-Lock Plug (50 amp service required)
Dimensions:	27.61" L x 10.4" W x 10.56" H 701.3 mm x 264.2 mm x 268.25 mm
Weight:	58 lbs (26.4 kg)
Warranty:	2 Years (3 Year Optional)

TI2007-208 8ft. DC Aviation Cable Assembly OR
TI2007-315 15ft. DC NATO Cable Assembly OR
TI2007-515 15ft. DC Cable with Alligator Clamps (for maintenance & troubleshooting only
AND
TI25000-058 (CS8265) 25ft. Hardwired Single Phase Plug AC Line Cord
